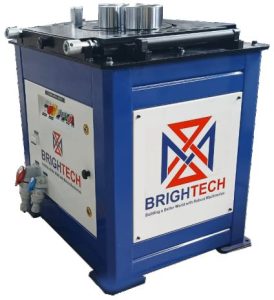

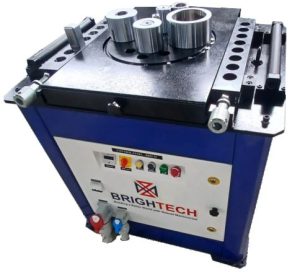

Bar Bending Machine
BRIGHTECH invites you to explore our all-new range of Bar Bending Machines engineered for maximum efficiency, safety and durability our machines incorporate cutting-edge features to meet the highest industry standards. BRIGHTECH quality comes first and it shows in every detail of our products.
BRIGHTECH, We craft, We Engineered, and supply advanced TMT Rebar Bending Machines built to perform. Designed with precision and powered by advanced features. Our machines are efficient, safe and built to last. When you choose BRIGHTECH you choose quality machines you can see and you can acknowledge our machine reliability.
SPECIFICATION
| Model | Model Capacity | Bend Wheel RPM | Over all Size (L×B×H mm) | Over all Weight (kg) | Bend Wheel Dia (mm) | Max Bend Radius | Bushes Supplied |
|---|---|---|---|---|---|---|---|
| BBM 42 | 3.7kw / 5.0 HP 1440 RPM |
9.05 | 710 × 820 × 970 | 338 | 350 |
4D for Ø25 3D for Ø32 |
Ø60, Ø70 Ø100, Ø120 |
| BBM 52 | 4.0kw / 5.4 HP 1440 RPM |
9.05 | 868 × 950 × 963 | 399 | 426 |
5D for Ø32 4D for Ø36 |
Ø60, Ø70, Ø100 Ø120, Ø160 |
| BBM 55 | 5.5kw / 7.5 HP 1440 RPM |
5.05 | 990 × 950 × 1110 | 580 | 500 |
6D for Ø36 5D for Ø40 |
Ø60, Ø70, Ø100 Ø120, Ø160, Ø220 |
CAPACITY CHART
BAR BENDING MACHINE
| MODEL | Bars Specification | Bars Diameter in mm | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 36 | 32 | 25 | 20 | 16 | 12 | 10 | 8 | ||
| BBM 42 | No.of Bars - FE 500 (50kg/m m2) | .... | 1 | 1 | 1 | 2 | 3 | 3 | 4 | 6 |
| No.of Bars - FE 500D (60kg/m m2) | .... | .... | 1 | 1 | 1 | 2 | 3 | 4 | 5 | |
| No.of Bars - FE 550D (70kg/m m2) FE 600 | .... | .... | 1 | 1 | 1 | 2 | 3 | 4 | 5 | |
| No.of Bars - FE 500S (78kg/m m2) | .... | .... | .... | 1 | 1 | 2 | 3 | 4 | 5 | |
| BBM 52 | No.of Bars - FE 500 (50kg/m m2) | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 | 8 |
| No.of Bars - FE 500D (60kg/m m2) | .... | 1 | 1 | 1 | 2 | 3 | 4 | 6 | 8 | |
| No.of Bars - FE 550D (70kg/m m2) FE 600 | .... | 1 | 1 | 1 | 2 | 3 | 4 | 5 | 7 | |
| No.of Bars - FE 500S (78kg/m m2) | .... | .... | 1 | 1 | 2 | 3 | 4 | 5 | 7 | |
| BBM 55 | No.of Bars - FE 500 (50kg/m m2) | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 |
| No.of Bars - FE 500D (60kg/m m2) | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 7 | 8 | |
| No.of Bars - FE 550D (70kg/m m2) FE 600 | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 | 8 | |
| No.of Bars - FE 500S (78kg/m m2) | 1 | 1 | 1 | 2 | 2 | 3 | 5 | 6 | 8 | |

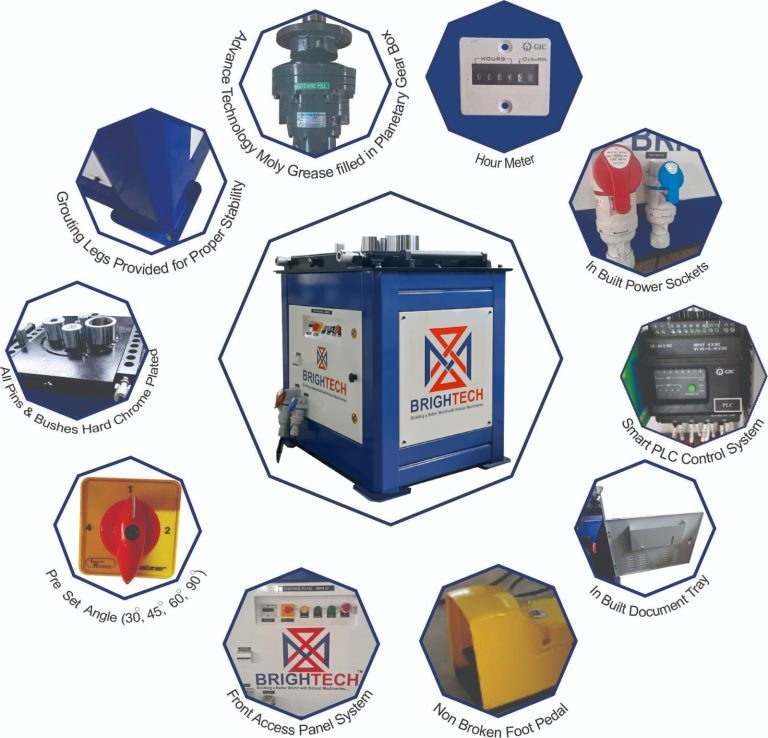

FEATURES OF BRIGHTECH BAR BENDING MACHINE
Advanced PLC Automation
- Controlled via a PLC system, BRIGHTECH machines now feature four factory-set angles (30°, 45°, 60°, 90°).
- This first-of-its-kind approach in India eliminates the limitations of traditional relay systems, delivering enhanced precision and efficiency.
- PLC Panel placed on operator side for ease of service ability.
- BRIGHTECH has strategically placed the PLC panel on the operator’s side to facilitate easier servicing and operational control Equipped with a no-maintenance electric brake and a high-quality imported foot pedal, sealed to IP55 standards for superior protection.
- In Built Power Sockets to create secure and reliable connections.
- Moly Grease filled Planetary gear box Lubricated for life time.
- Rigid sliding block with C-Guide provides more ruggedness.
- Finished with a complete powder coating to provide robust protection and an attractive appearance.
- All Pins and Bushes with hard chrome plating for better protection.
Robust grouting legs, designed for easy access, facilitate straightforward grouting and improve machine firmness.
