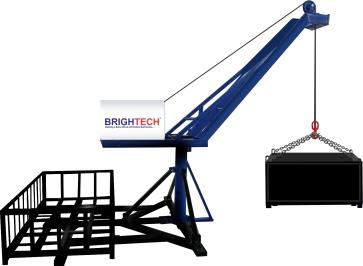

Brightech Construction Lift
BRIGHTECH Construction Machine is a compact and mobile hoisting solution designed for vertical transport of materials in construction and industrial environments.
Suitable for handling small to medium loads, it provides a reliable and effective means to move tools, equipment and materials between floors or work levels.
SPECIFICATION
| BRIGHTECH CONSTRUCTION LIFT - BCL -500 | |
|---|---|
| Load Capacity | 415 Kgs |
| Lifting Height | Up to 70 meters |
| Motor Capacity | 5 HP, 1440 RPM |
| Power Source | 3 Phase 50Hz, 415V AC, 7.2 Amps |
| Rope Size | 10mm ( Std 6x36) |
| Size (LXBXH) | 3450mm x 2420mm x 1460mm |
| Counter weight | 1500kg |
| Lifting Speed | 27mtrs per Min |
| Machine Weight | 419 Kgs |

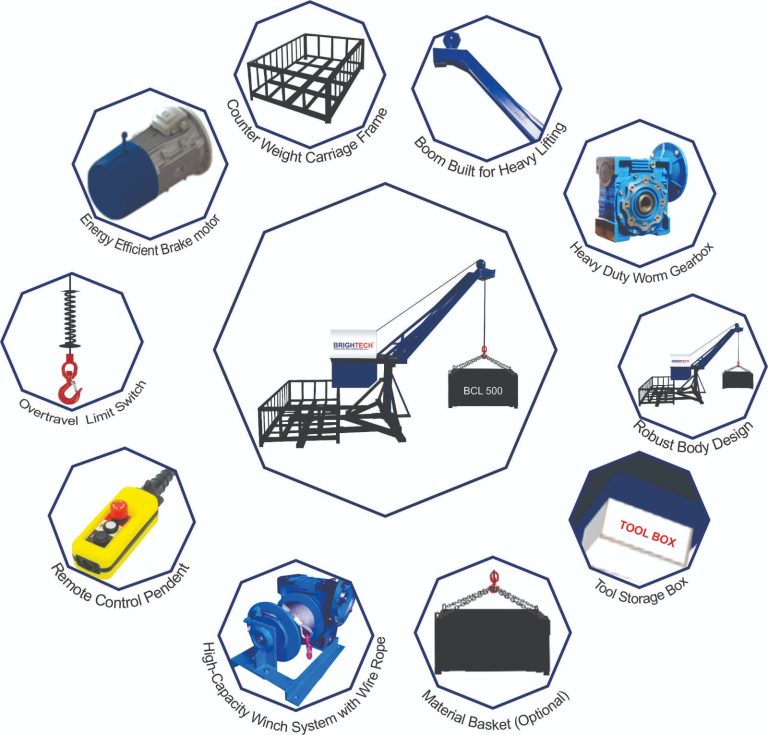

FEATURES OF BRIGHTECH CONSTRUCTION LIFT
Key Features :
Brake Motors: Brightech supplies durable, energy-efficient motors designed for extended service life and superior power savings. The integrated electro-mechanical brake system ensures safety by automatically engaging during power outages.
1.6-Meter Boom: Featuring an extra-long 1.6-meter boom capable of handling loads up to 500 kg. This equipment offers a remarkably compact footprint, making it the best in its class.
Safety Limit Switch: All models come standard with a top safety limit switch that automatically cuts power to the motor if the operator fails to stop it in time, preventing overtravel.
Counterweight Tray: The machine supports two heavy-duty counterweight trays, specially designed to hold 4” or 6” concrete blocks for optimal balance and stability.
Toolbox: BRIGHTECH is having in built toolbox in the mini-lift, providing convenient storage for tools and spare parts directly on the machine.
Counterweight Bucket: An addition to the machine’s main counterweight system, a separate boom counterweight bucket is provided to properly balance the boom’s weight.
Heavy-Duty Gearbox: Equipped with a rugged speed reduction gearbox directly coupled to the rope drum, this design eliminates the need for belt drives, enhancing reliability and reducing maintenance.
Pendant Operation Control: The machine is operated via a relay-based control panel integrated into a remote pendant. It features automatic shutdown during overloads or over-travel conditions for operator safety and ease of use.
