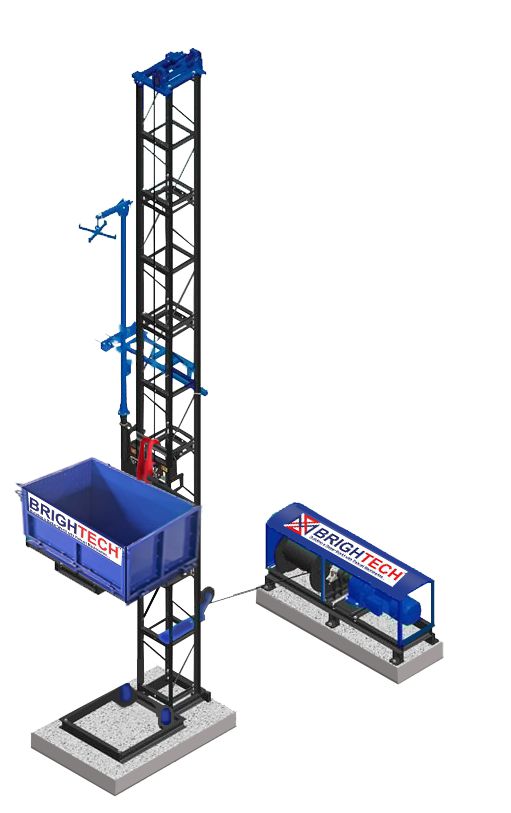

Brightech Material Hoist
The BMH1000 and BMH1500 are robust material handling lifts designed for vertical transportation of construction materials such as concrete buckets, bricks, sand, gravel, and more. These machines are built for durability and ease of use, offering a ready-to-operate solution that can be quickly installed and deployed on-site. Each unit is equipped with safety upper and lower limit switches to prevent over-travel of the carriage frame, along with an emergency locking system that automatically engages with the mast structure in the event of a free fall or rope failure, ensuring maximum operator safety. The electrical components are securely housed in a sealed enclosure, providing protection from dust and moisture while remaining easily accessible for inspection or maintenance.
The machine is supplied with dual control options—a fixed control panel and a pendant remote control—allowing the operator better visibility and flexibility during operation.
BMH stands for Brightech Material Hoist, where the model numbers 1000 and 1500 indicate the machine’s gross lifting capacity in kilograms. These hoists are powered by three-phase brake motors rated at 10 HP and 12.5 HP, respectively, and are coupled with inline gearboxes to ensure efficient and reliable performance.
FEATURES OF BRIGHTECH MATERIAL HOIST
Pendant Control System: Designed for operator freedom, the system offers effortless machine control from any angle for improved efficiency and safety.
Upper and Lower Limit Switch: Every model is equipped with built-in top and bottom safety limit switches that automatically cut off power if the operator fails to stop the system manually in time.
Heavy-Duty Gearbox: The advanced planetary gearbox, directly linked to the brake motor, replaces outdated belt and chain systems—delivering smoother performance with minimal upkeep.
Mechanical Safety Lock: A fall-arrest mechanism that automatically secures the material cage to the mast in the event of a rope malfunction or failure.
Masts: Manufactured for optimal reliability, the masts employ precise jigs and fixtures to achieve consistent quality, exact alignment, and interchangeable components.
Mechanical Safety Lock: A fall-arrest mechanism that automatically secures the material cage to the mast in the event of a rope malfunction or failure.
Wall Ties: Wall ties provide secure attachment points at 6-meter intervals, removing the necessity for scaffolding or other temporary supports during mast installation.
Hour Meter: By tracking the operational hours, the hour meter provides insight into the utilization rate of the hoist, helping in assessing the efficiency and workload of the equipment.
Emergency Stop Switch: The emergency switch is an essential safety component on a material hoist, enabling immediate shutdown of the hoist motor in emergency situations. It protects personnel and equipment by providing a fast, reliable way to stop operations and prevent accidents.
Brightech Material Hoist is a durable and purpose to built solution for seamless vertical material handling at construction sites, offering industry-leading features, high reliability, and enhanced safety measures. The drive system incorporates cutting-edge inline planetary gearing combined with an energy-saving, reliable S-4 Duty brake motor. The motor’s built-in braking mechanism ensures automatic locking during power interruptions.
Furthermore, the hoist is equipped with a mechanical safety lock that engages if rope slippage or failure occurs, ensuring added operational safety.
SPECIFICATION
| Sl No | DESCRIPTION | SPECIFICATIONS | |
|---|---|---|---|
| Model | BMH 1000 | BMH 1500 | |
| 1 | Gross Lifting Capacity | 1000 Kgs | 1500 Kgs |
| 2 | Net Lifting Capacity | 800 Kgs | 1200 Kgs |
| 3 | Wire rope | Ø12MM(6X36 construction) | Ø14MM(6X36 construction) |
| 4 | Drive Power | 3-Phase, 10 HP Brake Motor | 3-Phase, 12.5 HP Brake Motor |
| 5 | Lifting Speed | 30-35 mtr / min | 30-35 mtr / min |
| 6 | Max - Standard Height | 70 meters | 70 meters |
| 7 | Mast Section | 500x400x1500mm Angle 50x50x6mm |
500x400x1500mm Angle 50x50x6mm |
| 8 | Rect.Cage Dimensions | 1250x830x610mm | 1250x830x610mm |
| 9 | Electromagnetic Braking system | Yes | Yes |
| 10 | Free Fall Locking System | Yes | Yes |
| 11 | Wall Tie Interval | Every 6 meters upto 70-mtrs | Every 6 meters upto 70-mtrs |
| 12 | Top limit switch | Yes | Yes |
| 13 | Bottom limit switch | Yes | Yes |
| 14 | Pendant remote control | Yes | Yes |
| 15 | Drive System | Planetary Gear Box | Planetary Gear Box |
| 16 | Rebar Attachment(Optional) | Rebar attachment :12mtrs Lifting Capacity 550kgs |
Rebar attachment :12mtrs Lifting Capacity 750kgs |
Reliable Material Hoist Manufacturers India
Brightech is a trusted name among material hoist manufacturers India, delivering high-performance lifting solutions for the construction and industrial sectors. Our material hoists are engineered to handle heavy loads safely and efficiently, ensuring smooth vertical transportation of construction materials across project sites.
Advanced Construction Hoist Solutions
As one of the leading construction hoist manufacturers in India, we design and manufacture robust hoists using premium-grade steel, precision components, and advanced safety mechanisms. Our material hoists are ideal for lifting bricks, cement, steel bars, tools, and other construction materials in multi-storey buildings, infrastructure projects, and industrial facilities.
Trusted Material Hoist Suppliers in India
Brightech stands out among material hoist suppliers in India by offering customized solutions to meet specific project requirements. Our hoists are known for their durability, easy installation, low maintenance, and compliance with safety standards. With strong technical support and timely delivery, we ensure uninterrupted operations at every site. Choose Brightech for material hoists that combine strength, safety, and long-lasting performance—making us a preferred partner for builders and contractors across India.
