Brightech Suspended Platform
BRSP series Temporarily Installed Suspended Access Equipment is an ideal working access for façade works of high-rise buildings as facade construction, decoration, maintenance ship building and repairing or in other works such as big-size tank, bridge, embankment and chimney.
It is easy for operation, flexible for moving, reliable in safety. It can take the place of construction scaffolding, improve the efficiency and save cost. Above all, Platforms provides workers a safer, easier and more efficient working access.
BRSP series temporarily installed suspended access equipment consists of the components as below:

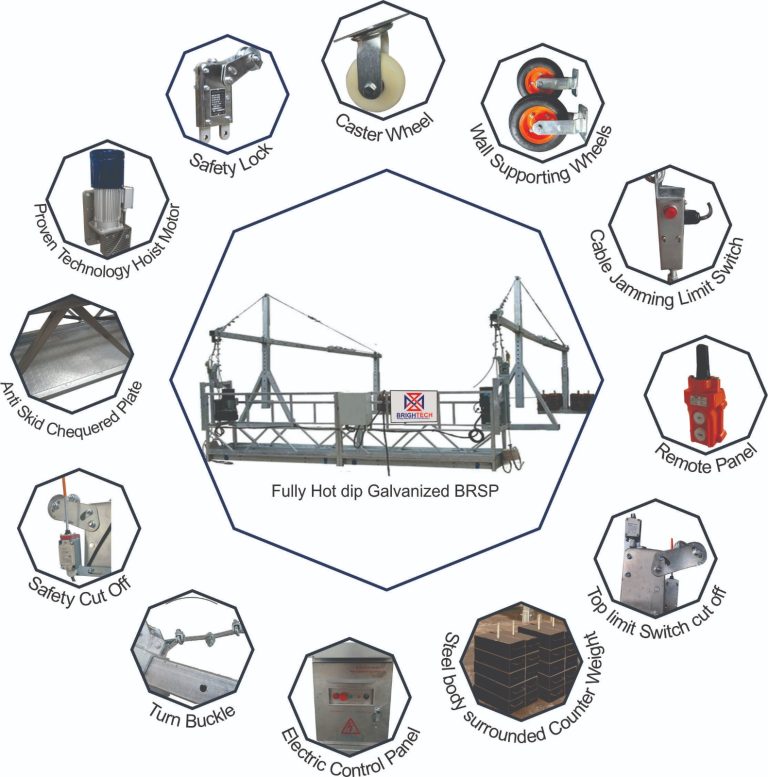

Hoists, Safety locks, Electric Control System, Suspend platform, Suspension Mechanism, Counter Weight & Steel Ropes etc.
Hoists, Safety locks, Electric Control System, Suspend platform, Suspension Mechanism, Counter Weight & Steel Ropes etc.
Suspension Mechanism
The suspension mechanism is the heavy-duty steel frame structure fixed on the top of the building as the supporting equipment. It is designed for all series suspended platforms.
Structure of Suspension Mechanism:
Allow for adjustment of beam length to accommodate different roof limitation.
Suspension mechanisms contain followings :
The permissible load should be adjusted according to the height, front beam overhang, distance between the front base and rear base and other variables.
Suspended Platform

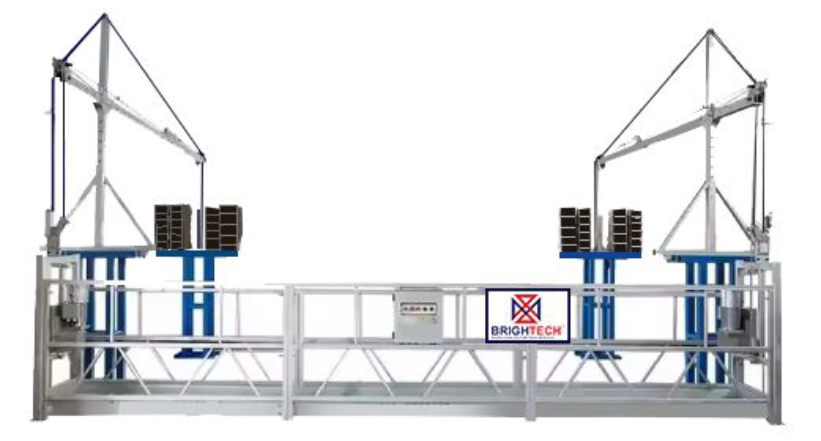

Suspended platform is the workplace at heights for the workers. A modular system gives you the flexibility you need to mix and match sections to achieve different lengths, with caster wheel fitted underneath the platform is easy to move.
SPECIFICATION
| BRIGHTECH ROPE SUSPENDED PLATFORM - MODEL : BRSP - 800B/P | |
|---|---|
| Rated lifting Capacity | 800kgs |
| Hoist Speed | 8.3M/min |
| Material | Hot Dip Galvanised Branded steel pipes & steel platform with side support hoist stand. |
| Width | 610 mm |
| Side Support wheels | 2 wheels of rotating type 6” high grade poly material are provided for wall support, keeping safe distance form wall and reduction of swings. |
| Base wheels | 4 wheels of fixed type 6” high grade poly material are provided on the bottom of the platform for easy movement and shifting. |
| Platform Length | 7.5 Mtrs (2.5mtrs 2 sections +1.5mtrs + 1mtr) |
| SUSPENSION MECHANISM IN LIFTING | |
| Parapet Extension | Telescope front beam from 1,219 mm to 1,829 mm adjustable, load carry capacity will proportionately decrease when the extent is more than 1,372mm. |
| Height Adjustment | 1,143mm to 1,753mm (adjustable distance of 100mm) |
| Model & Type | BRSP 800 with Electromagnetic brake motor, Centrifugal speed limiter and dual speed reduction. |
| Motor Standard | European Standard |
| Rope Holding Mechanism | Alpha (A) Type rope holding mechanism. |
| Material | Heavy duty aluminum die cast body. |
| Power | 2.5 HP |
| Voltage | 415 V 50 Hz |
| Rotation speed | 1420 m/ min |
| Braking Torque | 15 N-m |
| Limit Switch | Limit switch is attached with Hoist, Upon triggering, it signals control panel to cut power while further moving up. |
| Quanity | 2 Units |
| Wired Remote | 3 mtrs wired remote is provided to operate the cradle for moving up or down. |
| SAFETY LOCK | |
| Anti Tilting lock (ATL) | 2 Units |
| Locking Distance | < 100 mm |
| Locking Angle | 3 to 8 degree |
| Permitted Force of Impact | 30 KN |
FEATURES OF ROPE SUSPENDED PLATFORM
| ELECTRICAL CABLE | |
|---|---|
| Electrical Cable Type | 2.5 mm x 5 core |
| Electrical Cable Length | 100 mtrs |
| STEEL WIRE ROPE | |
| Rope Type | Galvanized Steel wire rope of 4 x31 fiber core construction. |
| Rope Dia | 9.1 mm |
| Length | 100 mtrs |
| Quantity | 4 nos (2 Nos. Working wire ropes & 2 Nos. Safety wire rope) |
